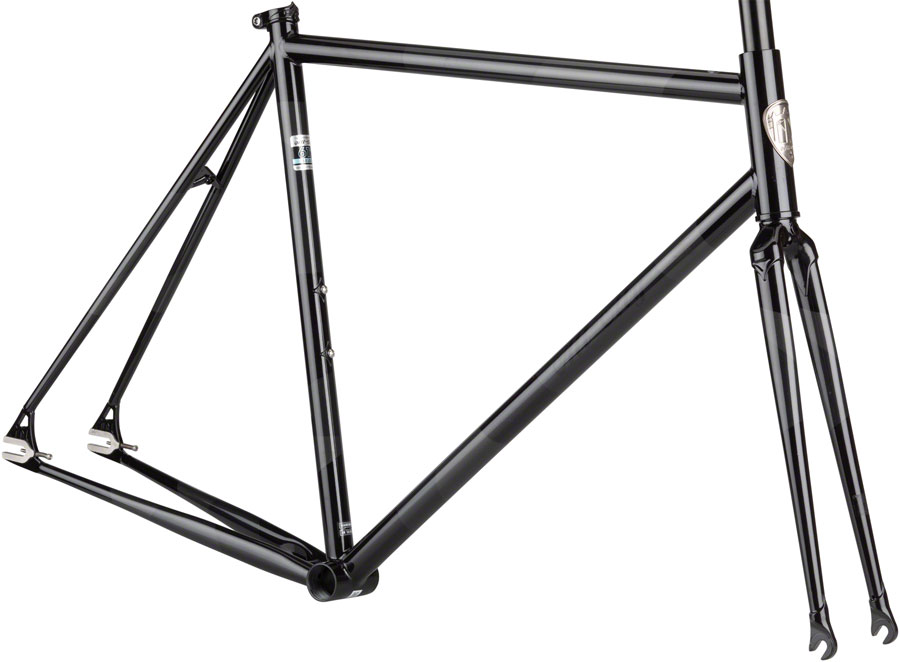

ALL-CITY Big BLOCK [ACF2010]

■楽しく、速く、派手に

街中での悪ふざけや好奇心旺盛な冒険のために作られたBig Blockは、楽しさと速さを求めるローメンテナンスライフスタイルのための、固定ギア式のスチールマシンです。レスポンスが良く快適なフレームセットと余裕のあるタイヤクリアランスにより、トップレベルのハンドリングを実現し、仲間と一緒に路上のおしゃべりと楽しい気分を満喫できます。

SPEC:
Frame Construction
612 Select Chromoly Steel, Tig Welded and Brazed, E.D. Coated

Fork Construction
612 Select Chromoly Steel, Tig Welded and Brazed, E.D. Coated

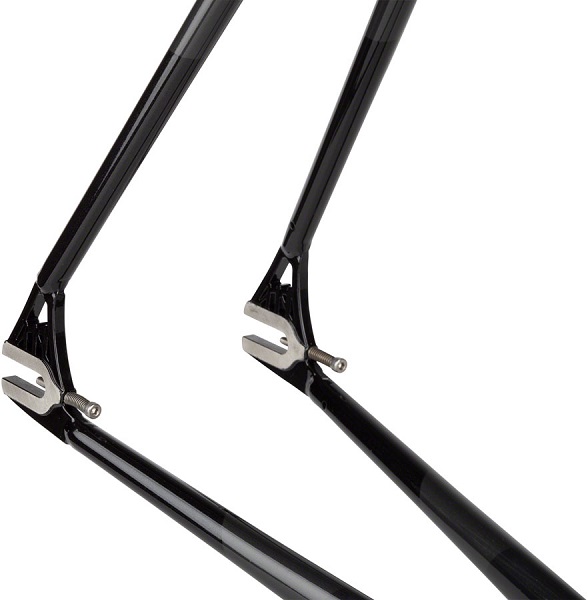

Rear Dropout Configuration
All-City Signature Hennepin Bridge Track Drop Out, Stainless Steel

Rear Hub Spacing
120mm

Front Hub Spacing
100mm

Rear BrakeRim
Short Reach Caliper

Front BrakeRim
Short Reach Caliper

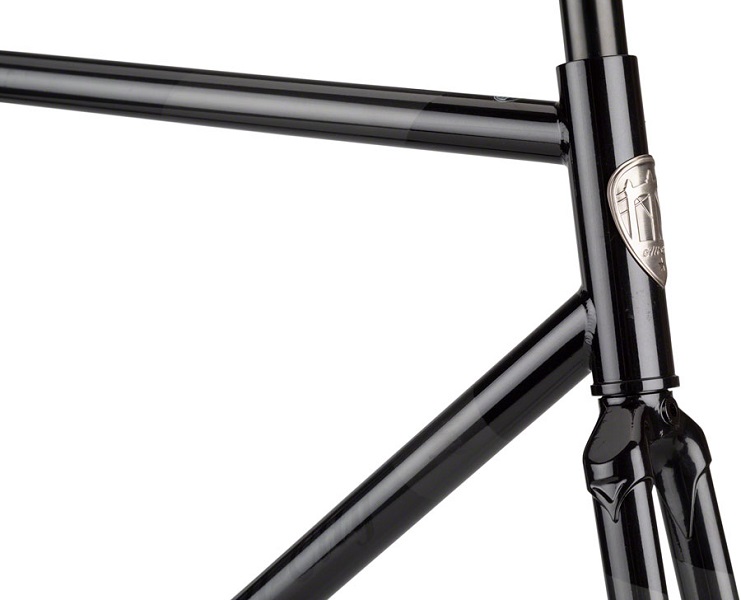

Headtube
Ø34mm

Steerer Tube
Ø28.6mm (1-1/8″)

Crown Race
Ø30mm (1-1/8″)

Stock Headset
Upper (S.H.I.S)EC34/28.6

Stock Headset
Lower (S.H.I.S)EC34/30

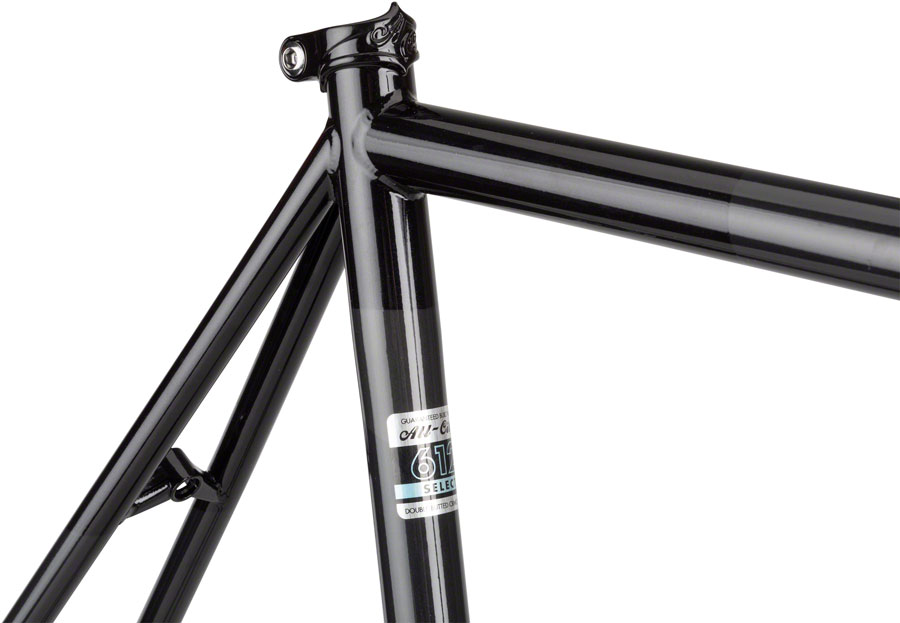

Seat Collar
All-City Signature Brazed-On

Seatpost
Ø27.2mm

Front Derailleur (Clamp)
N/A

Max Chainring (CL)
1x: 60t max

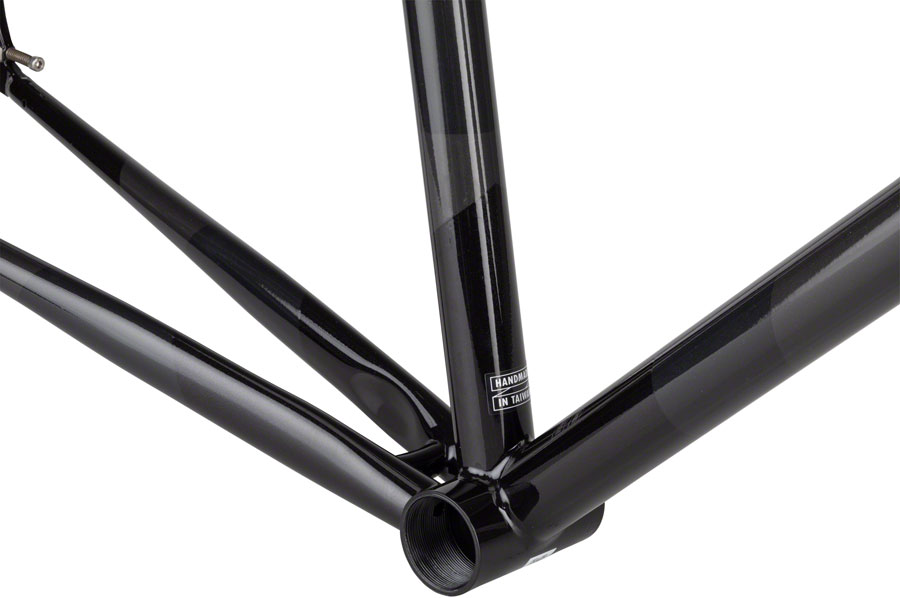

Bottom Bracket
English Threaded, BSA 68 shell

Tire Clearance Frame
700c x32mm, 700c x 28mm with fenders

Tire Clearance Fork
700c x32mm, 700c x 28mm with fenders

Rigid Fork Spec
375mm Axle to Crown with 32mm Offset

Design Suspension Fork Length
N/A

Max Suspension Fork Length
N/A

Bottle Mounts Frame
One, located on Seat Tube

Bottle Mounts Fork
N/A

Rack Mounts Frame
N/A

Rack Mounts Fork
N/A

Fender Mounts Frame
N/A

Fender Mounts Fork
N/A

Other Features
N/A
